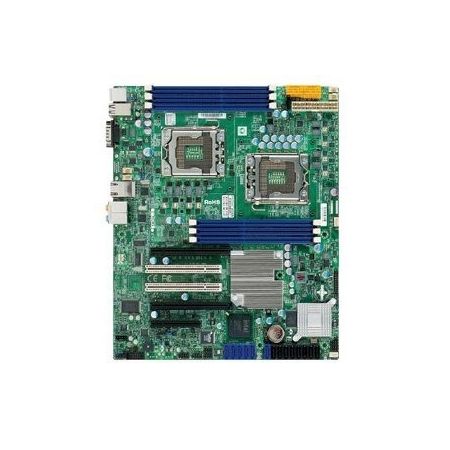

Supermicro X8DAL-i Workstation Motherboard - Intel 5500 Chipset - Socket B LGA-1366 - Retail Pack Item # 279364
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
279364
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
The X8DAL-i Workstation Board is designed with the utmost attention to detail to provide the highest standards in quality and performance. supports the Intel 5500 Series Processor platform, the first dual-processing platform that supports the Intel QuickPath Interconnect (QPI) Technology, providing the next generation point-to-point system interface to replace the current Front Side Bus.
Product Details
| Item # | 279364 |
| Manufacturer # | 10549442 |
| Number of SATA Interfaces | 6 |
| Number of PS/2 Ports | 2 |
| Hardware Features | Chassis intrusion detection, Intel QuickPath Architecture |
| Onboard LEDs Header | Yes |
| Memory Speed Supported | 1.33 GHz; 1.07 GHz; 800 MHz |
| Additional Information | System BIOS:32Mb SPI Flash EEPROM with AMI BIOS; Plug and Play (PnP); PCI 2.2; ACPI Up to 3.0; USB Keyboard support |
| S/PDIF | Yes |
| Compatible Processors | Quad-Core Xeon 5500 series |
| BIOS Type | AMI |
| Registered or Buffered | Registered, unbuffered |
| Audio Line In | Yes |
| Storage Interfaces | Intel ICH10R : SATA-300 -connectors: 6 x 7pin Serial ATA - 6 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Number of PCI Express x16 Slots | 1 |
| Total Number of PCI Express Slots | 3 |
| Total Processor Supported | 2 |
| 64-bit Processing | Yes |
| Bus Clock | 1333 MHz, 1066 MHz, 800 MHz |
| Max Processors Qty | 2 |
| RAID Supported | Yes |
| brand name | Supermicro |
| Audio Channels | 7.1 |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| Network Controller | 2 x Intel 82574L |
| Processor Technology | Enhanced SpeedStep Technology |
| Number of USB 2.0 Ports | 4 |
| Package Type | Retail |
| PS/2 Port | Yes |
| Processor Socket | LGA1366 Socket |
| Sound Controller Manufacturer | Realtek |
| Chipset Model | 5500 |
| Number of PCI Slots | 2 |
| QuickPath Interconnect | 6.40 GT/s |
| Additional Connectors (Optional) | 4 x USB 2.0 |
| Total Number of Onboard USB Ports | 2 |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| RAID Levels | 0; 1; 5; 1+0 |
| Processor Supported | Xeon Dual-Core; Xeon Quad-core |
| BIOS Features | ACPI 3.0 support |
| Total Number of USB Ports | 4 |
| Serial Port | Yes |
| Number of PCI Express x4 Slots | 2 |
| Onboard Audio Header | Yes |
| width | 12 in |
| package contents | X8DAL-i Workstation Board; 6 x 57.5cm SATA Flat S-S PBF; 1 x I/O Shield; 1 x Support Disc; 1 x User Manual |
| Number of Memory Slots | 6 |
| Sound Controller Model | ALC883 |
| depth | 10 in |
| Product Name | X8DAL-i Workstation Motherboard |
| Audio Codec | Realtek ALC883 |
| manufacturer | Supermicro Computer, Inc |
| Number of S/PDIF Out Ports | 1 |
| Audio Line Out | Yes |
| Max Size | 24 GB |
| Maximum Memory | 24 GB |
| Supported RAM Integrity Check | ECC |
| controller type | Serial ATA/300 |
| Gigabit Ethernet | Yes |
| Network (RJ-45) | Yes |
| Microphone Port | Yes |
| Memory Standard | DDR3-1333/PC3-10600; DDR3-1066/PC3-8500; DDR3-800/PC3-6400 |
| Number of Total Expansion Slots | 5 |
| Chipset Manufacturer | Intel |
| form factor | ATX |
| Memory Technology | DDR3 SDRAM |
| model name | X8DAL-i |
| Show More ▾ |
